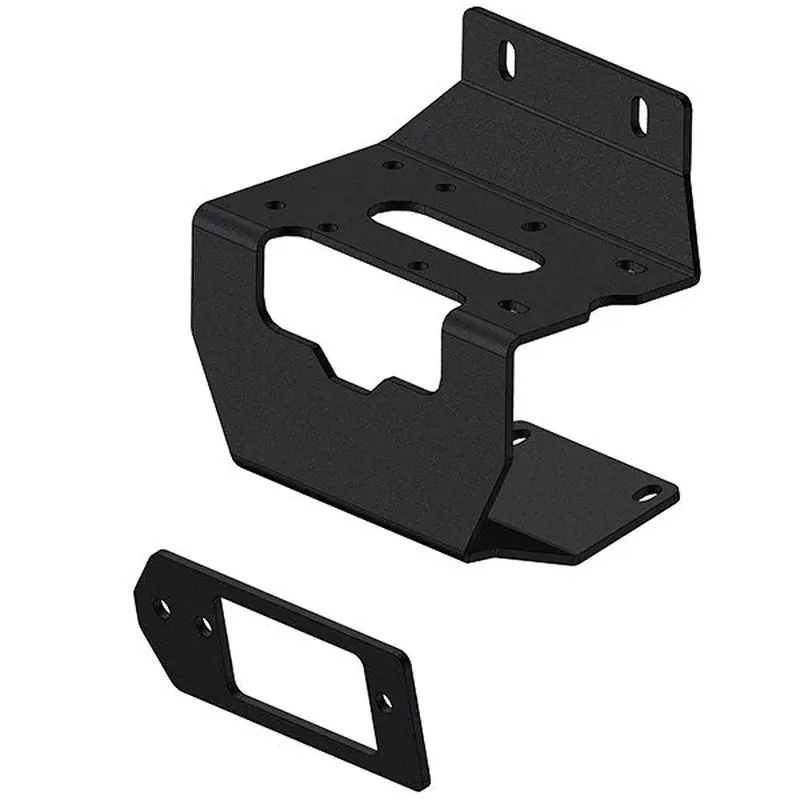

Brand New “KFI” winch mount for the following Honda UTV’s:

• ’16-23Honda Pioneer 1000 (all ModelsIncluding the LE)
• ’16-23Honda Pioneer 1000-5 (all ModelsIncluding the LE)
• 2023Honda Pioneer 1000-6

Direct replacement for #101885

Designed to work with the following winches:

• KFI:ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI:AM-25 / AM-35 / AS-25 / AS-35
• KFI:AS-50 / AS-50w
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN:AXON 35 / AXON 35-S / AXON 45RC
• WARN:AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:RT40 / XT40
• WARN:Vantage 2000-4000lb
• WARN:ProVantage 2500-4500lbs
• RAMSEY:ATV2500 / ATV3000
• SUPERWINCH:Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
• MILE MARKER:PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 / PE5000
• CYCLE COUNTRY:Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND:2-Hole Winches(Click Here for Details)
• BADLAND:Standard Winches(Click Here for Details)
• BADLAND:WIDE Winches(Click Here for Details)
• CHAMPION:2-Hole Winches(Click Here for Details)
• CHAMPION:Standard Winches(Click Here for Details)
• CHAMPION:WIDE Winches(Click Here for Details)
• KEEPER CORP. TRAKKER:KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER:KT2000
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
• SMITTYBILT:XRC 2.0
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
  • Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT:XRC 3.0 / XRC 4.0
• XGEAR:X3000 / X4000
  • 4-Hole Standard (3.00″ x 4.875″ bolt pattern)
• VENOM:2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  • All with 3.00″ x 4.875″ bolt pattern mount-up
  • All with 3.00″ x 6.600″ bolt pattern mount-up
• Traveller:1078311
• Traveller:1078088 / 1078302
  • Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
  • 4-Hole WIDE (3.00″ x 6.60″ bolt pattern with rollers that are 6.600″ or 6.000″ bolt pattern)
  • 2-Hole (3.10″ with rollers that are 4.875″ bolt pattern)
• QUADBOSS:RP25 / RP35

Specifications:

• Replaces older style KFI Mount #101285
  • improved cable angle out of the stock bumper
  • Simpler install
• Winch is mountedupside down for better cable angle out of the rollers.
• 100% MADE IN USA
• Constructed of 3/16″ steel
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• All mounting hardware included
• Satisfaction guaranteed
• Roller fairlead and winchnotincluded
